MERCY-SERIES EMERGENCY RELIEF CARGO DELIVERY UAS


GLIDER / DISPOSABLE / AUTONOMOUS



AVIUS Air Delivery™ Mercy-2000 is the world’s most efficient standoff delivery platform, safely transporting critically-needed cargo anywhere in the world—whenever and wherever it’s needed.


Versatile Deployment Platform

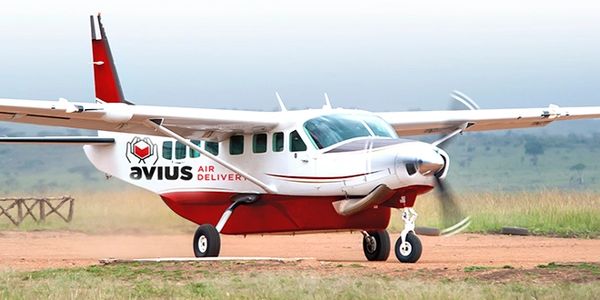

AVIUS Air Delivery Mercy-Series cargo units can be deployed out of Cessna Caravan style transport and utility planes, making distribution of supplies more affordable and timely than relying on government or military aircraft.

MERCY-2000 SPECIFICATIONS

WEIGHT

MEASUREMENTS

MEASUREMENTS

  • Gross Weight: 2,000 lbs (907 kg)
  • Cargo Weight: 1,631 lbs (740 kg)

MEASUREMENTS

MEASUREMENTS

MEASUREMENTS

  • Fuselage Length (as shipped): 8 ft (2.43 m)
  • Wingspan: 28 ft (8.5 m) wingspan (4 x 7 ft wings)

RANGE

MEASUREMENTS

RANGE

  • 25,000 ft Drop: 40 sm (35 nm) standoff, 12-minute flight

CARGO

AVIONICS

RANGE

Volume: >26 cu/ft (0.75 cu/m (not including additional area
inside tailcone)

LANDING

AVIONICS

AVIONICS

  • Accuracy: 100 meters, Full Stall Landing, Zero Vertical Impact
  • Speed (Stall): 62 kts @ 1000lbs, 92 kts @ 2000lbs

AVIONICS

AVIONICS

AVIONICS

 Modified COTS Pixhawk Cube, GPS, Magnetometer, Baro, IMU, LiDAR, Pitot, Optional RF, Optional FPV

Download Mercy-Series Brochure

AVIUS Air Delivery Mercy-2000 Brochure (pdf)

Download

COMING SOON

MERCY-SERIES ELECTRIC / REUSABLE / AUTONOMOUS

An electrically-powered extended range / persistent version of AVIUS Air Delivery™ is available, enabling multiple-use operations and ground-based take-off and recovery from improvised airfields as well as air drop.


Contact: orders@yateselectrospace.com
